really extra
very good idea

Thank you very much.
It's run perfectly.

just for windows :
.\compiler prog path\to\filename.bin -d <ZUNO_COMPORT>

Eric.

Hi,
Is there a command to upload a hex or bin directly into z-uno, once the sketch has been compiled, without arduino software (IDE)
My box does not offer "OTA".
Thank's.
Eric.

Hi, I took the time to test and check everything For zunoNID() and zunoInNetwork() on S0 bootloader : OK For Pull up on the same i/o port : OK For issue of compiler with security S2 and uploading sketch : OK For the difference of timing of the digitalRead on pin 3,4,5,6,7,8 : OK I had a problem with...

Hi,
A huge thank you for all these corrections and relevant additions !!!
Eric.

Hi, Really with pleasure, this z-uno is great. And thank you for all these developments. Great for pullup resistors, I hope it will not be too complicated. For S2 issues, I just reproduced the problem with the latest beta (by remove all from packages/Z-Uno & staging/packages and reload board fro...

Hi, I found a another issue with the compiler and S2 security. The burning of the bootloader is going very well, and when l load the program to the z-uno we have a mismatch error. I did the test with compiler 1.6.5 and 1.8.5 and it's the same problem. It works very well with version 2.1.3. With 2.1....

Hi, Big thank for your answer. really nice. I meant by "overload" that it is the electrical schematics that will have to have more resistance for each input. It's only that. No electrical problem. And I confirm that with 4.7K external pull resistors all inputs work perfectly. I'll wait for...

Hi,
No all the time, some pin works, other not.
No need to pass by relay, a pullup resistor to 3.3V suffice.

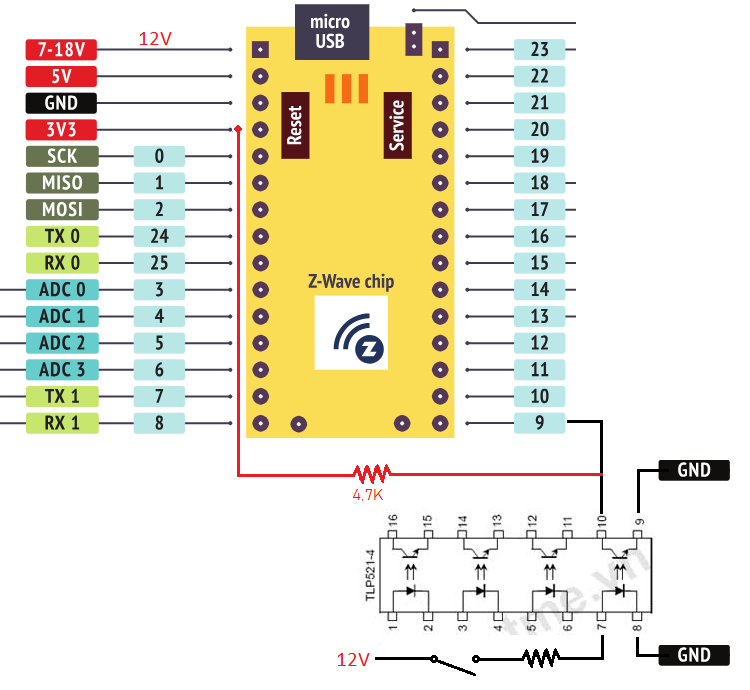

The electrical schema is : But it overloads everything!
Eric.

Hi, the getter must not return the state of the switch, but relay (invers of setter, both must be synchronous). try with this : byte getterSwitch1() { return currentLEDValue1; } and for all modify of switch, store value in currentLEDValue1 if (currentButtonState1 != lastButtonState1) { // if state c...
