Fibaro FGK-101 first start

[limitgreen]

Hey all,

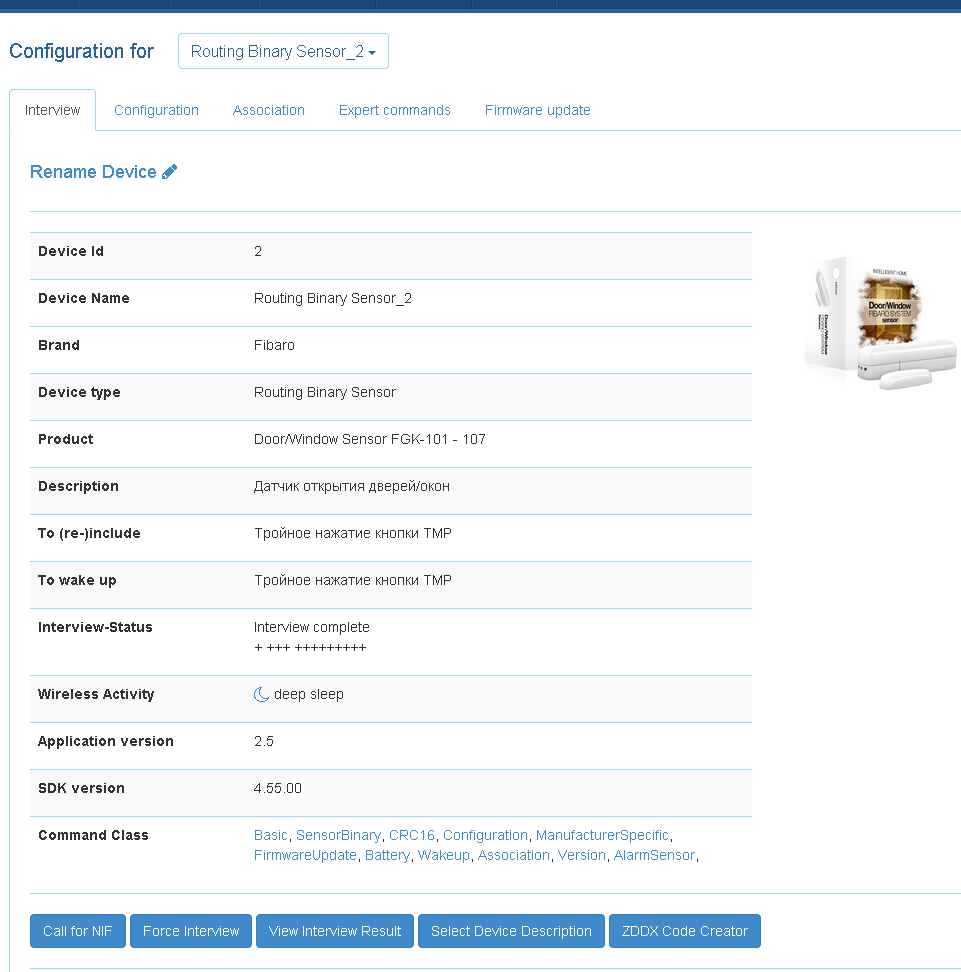

I am very exited to be a noobie in a z-wave world I have bourght Razberri board + Pi and a Fibaro FGK-101 Window/Door sensor. Z-wave.me install looks successfull and i can see the panel and such. It also looks like i have included the device correctly (no idea why its russian..)

The problem is i have no idea how to see state change? How to actually see when the doors are open/close. And there should be temperature sensor too..

Can it be because it sais device is Idle?



I have also installed OpenRemote but that is also super complicated to set up for a new z-wave user...

Anyone could guide me through the process of how things work here?

Thx in advance

[pz1]

Did you see the instruction I have written (see below)? Give it a try, and please report where you get stuck or things you are missing, so I can improve. Setting up with OpenRemote is a bit of work though.

[limitgreen]

Hey thx for a reply,

Yes i have looked at the guide. But part Check Z-Wave devices is not that easy for a new person if you dont have switch. For instance i have sensor and i cant test if its on or off. I go to Controll > Sensors and can see:

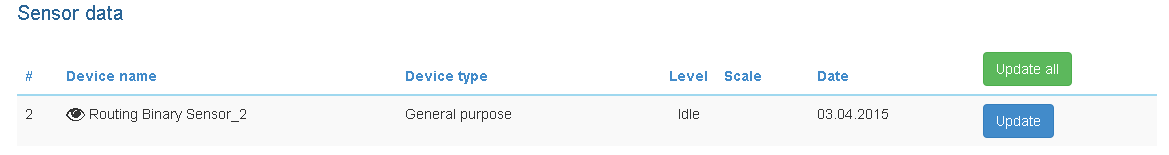

2 Routing Binary Sensor_2 General purpose Idle 03.04.2015

how could i test that its working?

[pz1]

Hey thx for a reply,

Yes i have looked at the guide.

Fine, thanks for the feedback.

But part Check Z-Wave devices is not that easy for a new person if you dont have switch. For instance i have sensor and i cant test if its on or off. I go to Controll > Sensors and can see:
2 Routing Binary Sensor_2 General purpose Idle 03.04.2015

Yes it is indeed a steep learning curve

how could i test that its working?

In the meantime I have added an example for a binary sensor to the manual. Also changed the commandclass number in named command classes to make it more readable. So with your browser you can test now:

Code: Select all

http://raspberry_IP:8083/ZWaveAPI/Run/devices[2].instances[0].SensorBinary.data[1].level.value

which returns false|true

If you have installed moule OpenRemoteHelpers you can use the simplified notation:

Code: Select all

http://raspberry_IP:8083/OpenRemote/SensorBinaryStatus/2/0/1

which returns on|off

[limitgreen]

hey

So i have tried those two lines and both of them returs FALSE or OFF. And it looks like my sensor never gets to ON or TRUE state.

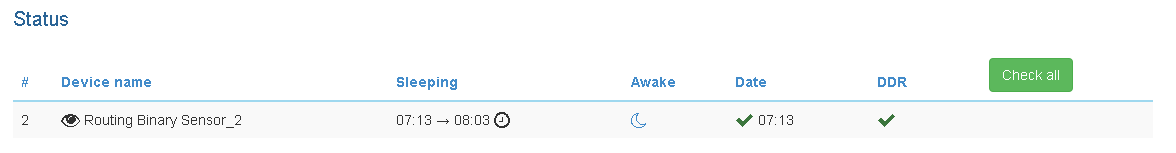

Any way to test if sensor is included correctly? do you know what state idle means and how can i change states if thats what causes it?

I have installed OpenRemote successfully so that part of the guide is good

[pz1]

But what did the browser say exaclty?

If everything looks allright in configuration as you say, I would play a bit with the http query in firefox or similar just start with

Code: Select all

http://raspberry_IP:8083/ZWaveAPI/Run/devices[2]

see what happens while you extend with

Code: Select all

http://raspberry_IP:8083/ZWaveAPI/Run/devices[2].instances[0]

etcetera. Maybe your device needs instance 1.

These two calls do generate quite a bit of JSON data. There is a recipe that helps visualising such data.
